As backup environments continue evolving toward cyber resilience, immutability, and operational simplicity, one of the most common deployments I still see in enterprise and mid-market environments is the combination of Dell PowerProtect Data Manager (PPDM) with Dell Data Domain appliances.
In my lab, I spent time integrating PowerProtect Data Manager with a Data Domain DD6410 to better understand deployment flow, configuration requirements, and real-world operational behavior. The process was straightforward overall, but there are several things worth validating immediately after deployment to avoid performance or retention problems later.
In this article, I’ll walk through:
- Initial architecture
- DD6410 preparation
- PowerProtect integration steps
- Common configuration mistakes
- Performance observations
- What I tested after deployment
Lab Environment Overview
My lab consisted of:
- PowerProtect Data Manager virtual appliance
- Dell Data Domain DD6410
- VMware vSphere environment
- Test Windows and Linux virtual machines
- Separate backup VLAN
- DNS and NTP configured internally
The DD6410 was used as the primary backup target for PPDM workloads.
The goal was to simulate a small-to-mid enterprise backup deployment with deduplication, centralized management, and scalable retention.
Why the DD6410 Still Makes Sense
The DD6410 continues to be a strong fit for:
- Remote office deployments
- Mid-size enterprise backup environments
- VMware protection
- Long-term retention
- Deduplicated backup storage
Even in environments exploring object storage or cloud tiers, Data Domain still delivers:
- Excellent deduplication
- Mature replication capabilities
- Reliable restore performance
- Tight integration with Dell backup platforms
For organizations already invested in Dell infrastructure, integration with PowerProtect Data Manager is extremely clean. ()
Preparing the DD6410
Before integrating with PPDM, I validated several items on the Data Domain side.
1. DNS and NTP
This sounds basic, but time drift and DNS failures still cause many integration issues.
I verified:
- Forward and reverse DNS resolution
- NTP synchronization
- Proper hostname configuration
- Reachability between PPDM and DD6410
If certificates fail later, this is usually one of the first places I check.
2. Storage Unit Planning

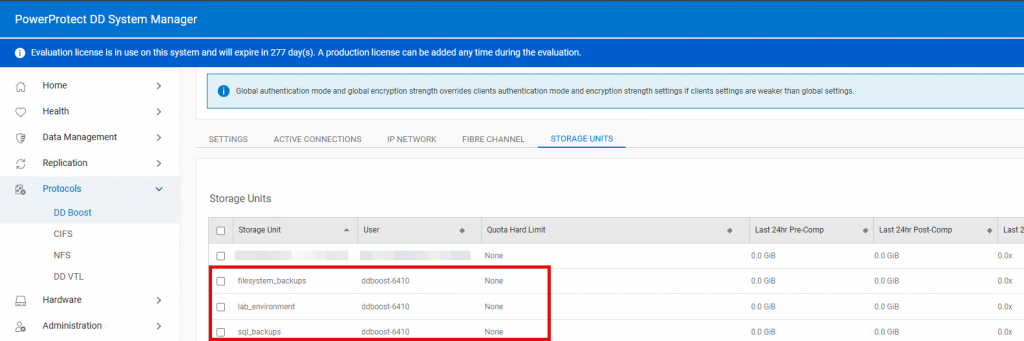

Instead of dumping all workloads into one storage unit, I created dedicated Mtrees and storage units for:
- VMware backups
- SQL backups
- File system protection
This makes:
- Retention management easier
- Reporting cleaner
- Replication more manageable
- Troubleshooting simpler
3. DD Boost Enablement
DD Boost was enabled on the appliance before integration.
This is critical because PPDM relies heavily on DD Boost for:
- Optimized deduplication
- Faster data movement
- Efficient metadata handling
- Improved restore performance

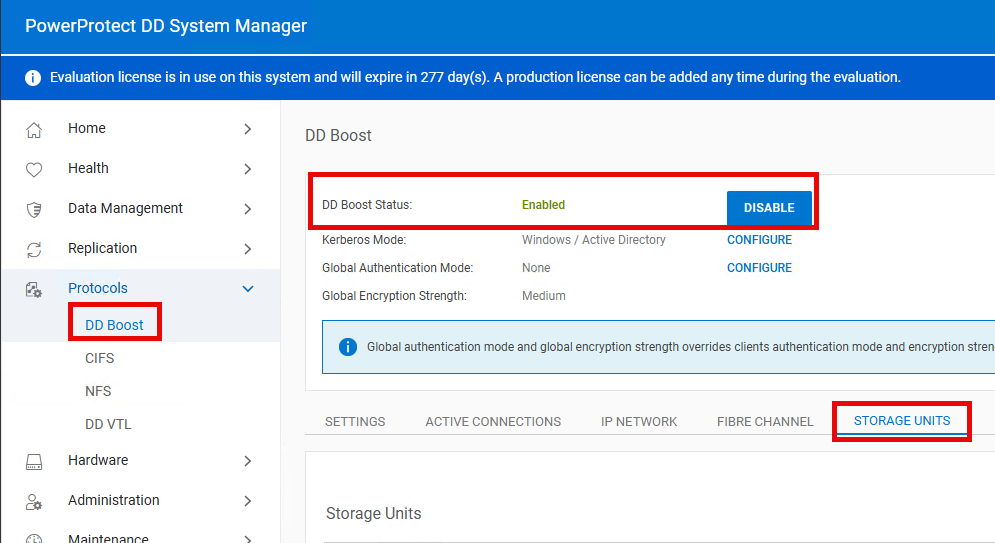

Without DD Boost properly configured, performance drops quickly. To enable/disable DDBoost look at the screenshot below – Protocols ==> DDBoost ==> Storage Unit ==> Enable/Disable
Integrating PowerProtect Data Manager
The actual integration process was fairly simple.

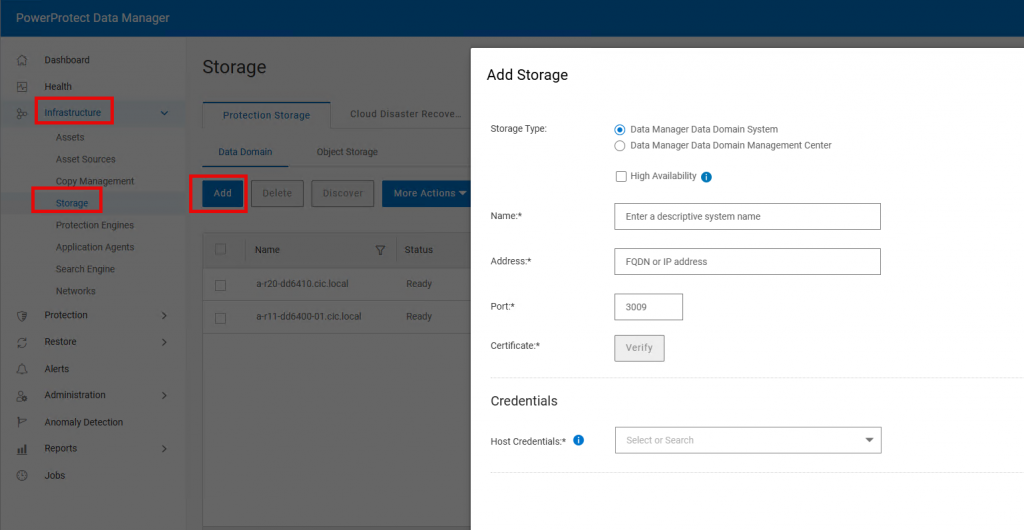

Inside PPDM:
- Navigate to Infrastructure
- Add Protection Storage
- Select Data Domain
- Enter DD6410 hostname
- Add DD Boost credentials
- Validate certificate
- Discover storage units
Once discovery completed, PPDM immediately recognized available capacity and storage units.
One thing I appreciated was how quickly PowerProtect mapped the DD resources into usable protection targets.
Immediate Post-Deployment Tests
This is where many environments fail.
A backup system is not “done” once jobs run successfully.
After integration, I immediately tested:
Backup Performance
I validated:
- Initial full backup throughput
- Incremental behavior
- Deduplication rates
- Concurrent workload handling
The DD6410 handled multiple VMware backup streams well in my lab.
Restore Testing
This is the most important step.
I tested:
- Full VM restore
- File-level restore
- Instant access operations
- Multiple simultaneous restores
Backup success means nothing if restore performance is poor.
The restore workflow through PPDM remained clean and predictable.
Alerting and Reporting
I verified:
- Failed job notifications
- Capacity alerts
- Storage utilization warnings
- DD connectivity alerts
Too many environments install backup infrastructure but never validate operational alerting.
Common Mistakes I See
Using One Massive Storage Unit
Separating workloads matters.
If everything shares the same retention and storage unit:
- Reporting becomes messy
- Replication planning gets harder
- Cleanup jobs become inefficient
Segmentation helps long term.
Ignoring Network Design
Backup traffic can become noisy fast.
I strongly recommend:
- Dedicated backup VLANs
- Proper MTU validation
- Isolated backup interfaces when possible
Backup infrastructure should never compete with production traffic unnecessarily.
Never Testing Restores
This is still the biggest operational failure in backup environments.
Many teams monitor:
- Backup success rates
- Capacity growth
- Job completion
But never validate:
- Recovery times
- Application consistency
- Actual restore usability
Recovery is the product — not the backup job itself.
Performance Observations
A few things stood out during testing:
Deduplication Efficiency
The DD6410 performed extremely well with repetitive VMware workloads.
Incrementals became very efficient after initial seeding.
Stable Throughput
Even with multiple concurrent jobs, performance remained consistent.
I didn’t observe major bottlenecks during normal lab load conditions.
Operational Simplicity
PPDM and Data Domain integration felt mature.
The workflow for:
- Adding storage
- Managing protection policies
- Monitoring jobs
- Running restores
was relatively straightforward compared to some legacy backup platforms.
Final Thoughts
The combination of PowerProtect Data Manager and the Data Domain DD6410 still provides a very solid modern backup architecture for organizations that need:
- Reliable deduplication
- Centralized protection management
- Scalable retention
- Fast restores
- Enterprise-grade backup workflows
What matters most, though, is not simply deploying the platform.
The real value comes from:
- Testing restores
- Validating alerting
- Monitoring storage growth
- Simulating failure scenarios
- Treating backup as an operational platform instead of a one-time project
Because in every real outage or ransomware event, recovery speed is what everyone remembers.
And that starts long before disaster strikes.
